Fuel Pressure Sensor
This page provides detailed information about the FuelTech 0-150 PSI Pressure Sensor used in the Honda RC51 custom ECU build, including its specifications, connector details, wiring, and visual references.
FuelTech 0-150 PSI Pressure Sensor Overview
While a fuel pressure sensor is not mandatory for ECU operation, it is highly recommended for optimizing engine performance and ensuring safe operation. The Honda RC51’s stock fuel system is a regulated return-style system, operating at approximately 50 PSI. Adding a fuel pressure sensor, such as the FuelTech 0-150 PSI sensor, is fairly straightforward and provides valuable real-time data for monitoring fuel pressure. In this example, I used a FuelTech 0-150 PSI sensor (Part #5005100020-BLK), but any fuel-compatible pressure sensor can be used, provided the input is correctly configured in FT Manager.
FuelTech 0-150 PSI Pressure Sensor Specifications
The FuelTech PS-150 Pressure Sensor (Part #5005100020-BLK) is designed for accurate and reliable pressure readings in the range of 0-150 PSI.
Connector Data
The FuelTech PS-150 Pressure Sensor uses a 3-pin connector (Delphi: 12065287) for secure and reliable data transmission to the engine management system. The connector kit ensures proper integration with the RC51’s wiring harness. Below are the details for the connector kit:
| Component | Part Number |
|---|---|
| Pan Vacuum/Pressure Sensor 3-Pin Connector Kit | Delphi: 12065287 |
You can also find more information on the exact connector specifications here.
ECU Setup

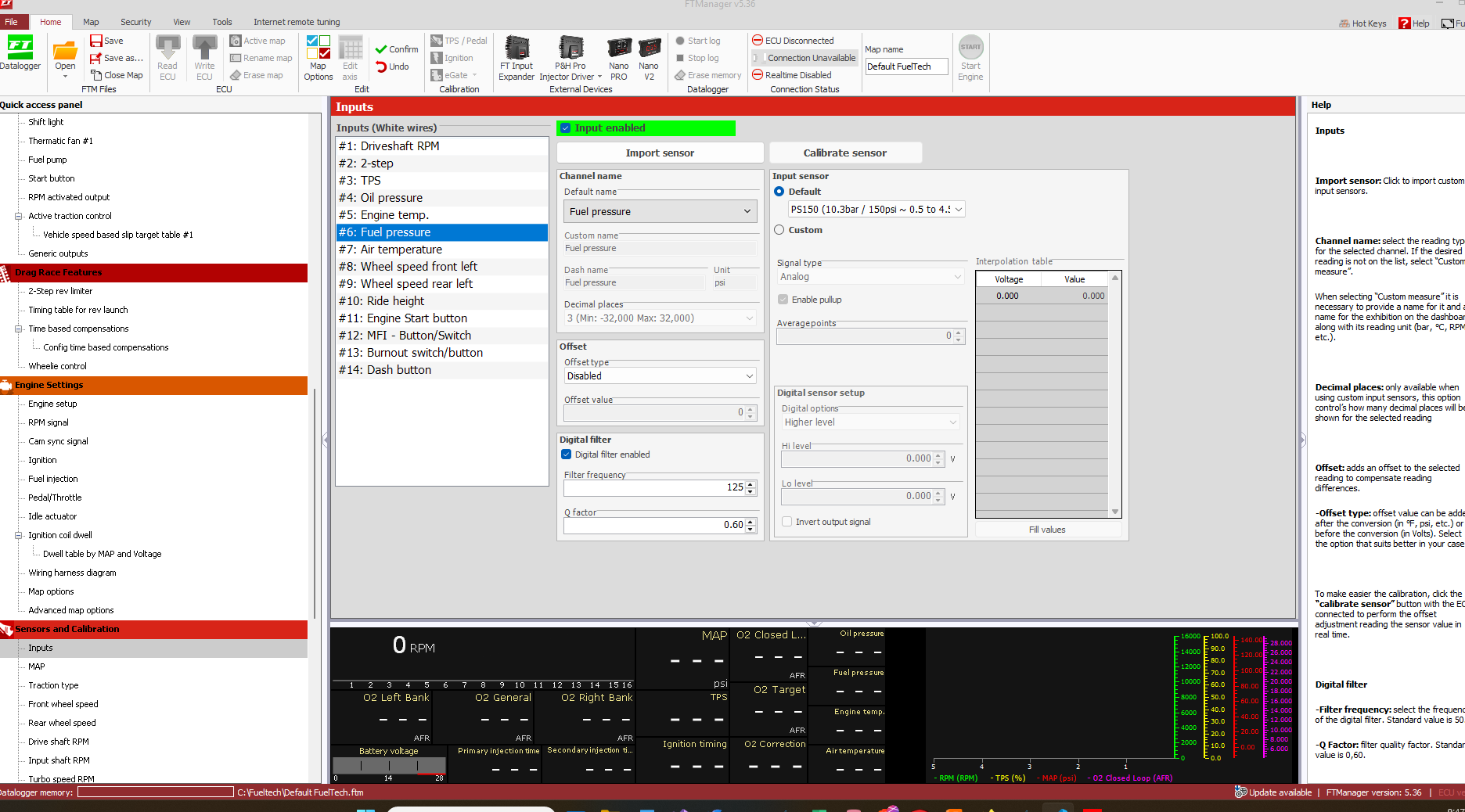

ECU configuration for the FuelTech 0-150 PSI sensor is very straightforward. Follow the steps below and select the predefined sensor configuration.
- Open FT Manager.
- Navigate to Sensors and Calibration.
- Click on the Inputs tab.
- Locate your Fuel Pressure input field.
- Select the correct default sensor parameter.
Physical Placement
Since there is no OEM sensor for fuel pressure, I added the sensor to the main fuel feed line. Refer to the Fuel Lines documentation for details.
Wiring Diagram
The FuelTech PS-150 Pressure Sensor uses a 3-pin connector with the following pinout: Pin A - Ground, Pin B - 5V, Pin C - Signal. Wiring is straightforward and can be connected to any available white input on the ECU. Refer to the FuelTech manuals for additional details if needed.
FuelTech Manual
For detailed installation and configuration instructions, refer to the official FuelTech manual available at: FuelTech Support Page.
