Custom Sensor Harness
This guide provides an overview of the custom Sensors sub-harness for the Honda RC51 ECU build, lists the connectors used, and outlines steps to build a new harness that integrates with the ECU harness.
Custom Sensors Sub-Harness Description
The custom Sensors sub-harness for the Honda RC51 connects the following sensors to the ECU:
| Sensor Name | Description | Connector Type |
|---|---|---|
| Engine Fuel Pressure | Measures fuel pressure in the fuel system. | Delphi 12065287 |
| Engine Oil Pressure | Monitors engine oil pressure for system health. | Delphi 12065287 |
| Cam Sync Sensor | Provides camshaft position data for engine timing. | Sumitomo 6189-0552 |
| Crank Trigger Sensor | Detects crankshaft position for ignition timing. | DTM06-3S |
| Engine Coolant Temperature Sensor | Measures engine coolant temperature for ECU adjustments. | Delphi 12162193 |
IMPORTANT NOTE:
Refer to the individual component pages for detailed wiring and configuration information for each sensor.

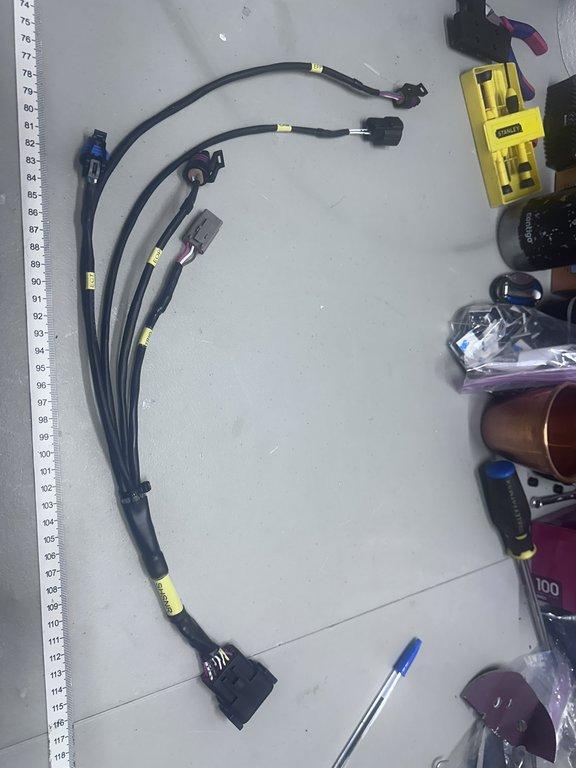

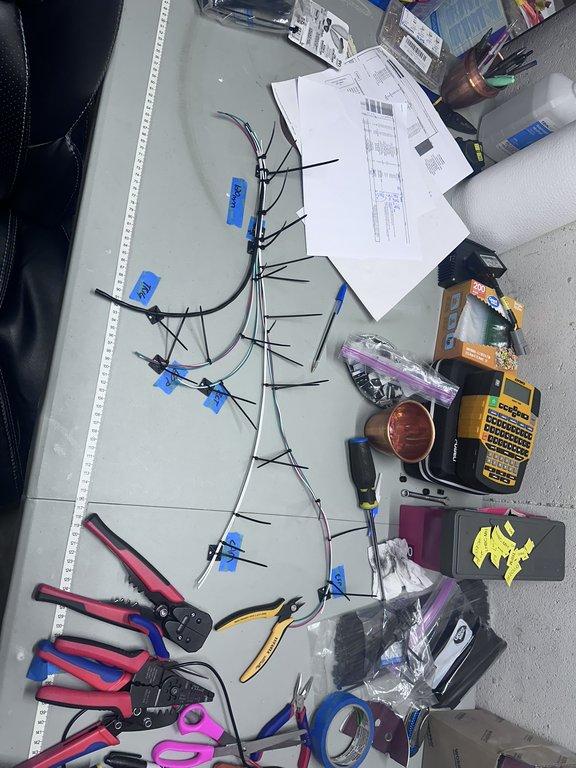

Custom Sensors Sub-Harness Images
Explore this collection of images showcasing the custom Sensors sub-harness and its installation.
